- Size: 3.3
- Place of Origin: China
- Brand Name: kingwei energy
- Model Number: KVH-6000
- Weight: 375.000 kg
- :

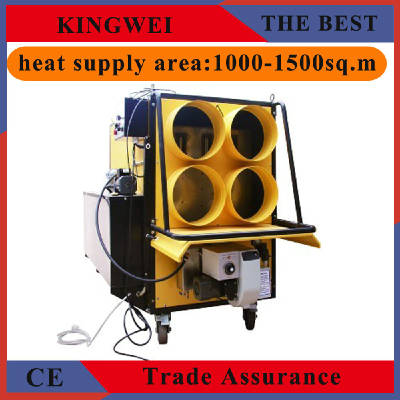

KVH-6000(800000Btu) portable waste oil heater
With Canvas tube
suit for 1000-1500sq.m
competely safe to use
- Size: 3.3
- Place of Origin: China
- Brand Name: kingwei energy
- Model Number: KVH-6000
- Weight: 375.000 kg
- :
KVH-6000 Portable Waste Oil Heater
Model | KVH-6000 |
Heat supply area | 1000-1500sq.m (10000-15000sq.ft) |
Size (L*W*H) | 200*98*138cm |
Heat exchanger | stainless steel combustion chamber |
Draught fan system | One 600mm(dia) YWF |
Oil consumption | 13-15L/H |
Output power | 154-195KW |
Max.output heat | 150,000-200,000 Kcal/H (600,000-800,000Btu/H) |
Air output | 12000m3/H |
Air output exit | 4x300mm(dia) |
Fan motor | 0.88KW |
Chimney diameter | 140mm |
Power supply | 220V,50HZ |
Outside air compressor | 1 unit outside ac is needed 0.3-0.5cbm/min(5-9L/s) |
Package size | 202x102x157cm |
Gross weight | 375KG |
Fuels | waste oil calorific value >8000Kcal, no solidification,no volatility,no water, is available to use. all kinds of waste oil,such as used engine oil,used crankcase oil used cooking oil,used transmission oil used hydraulic oil,used synthetic oil used mixed oil,used vegetable oil used diesel oil,used tyre pyrolysis oil waste machine shop cutting oil used grades #1,#3,#4 heating oils note:regular oils,such as diesel are also available |
Application | Various: garage,workshop,basement,canteen, |
